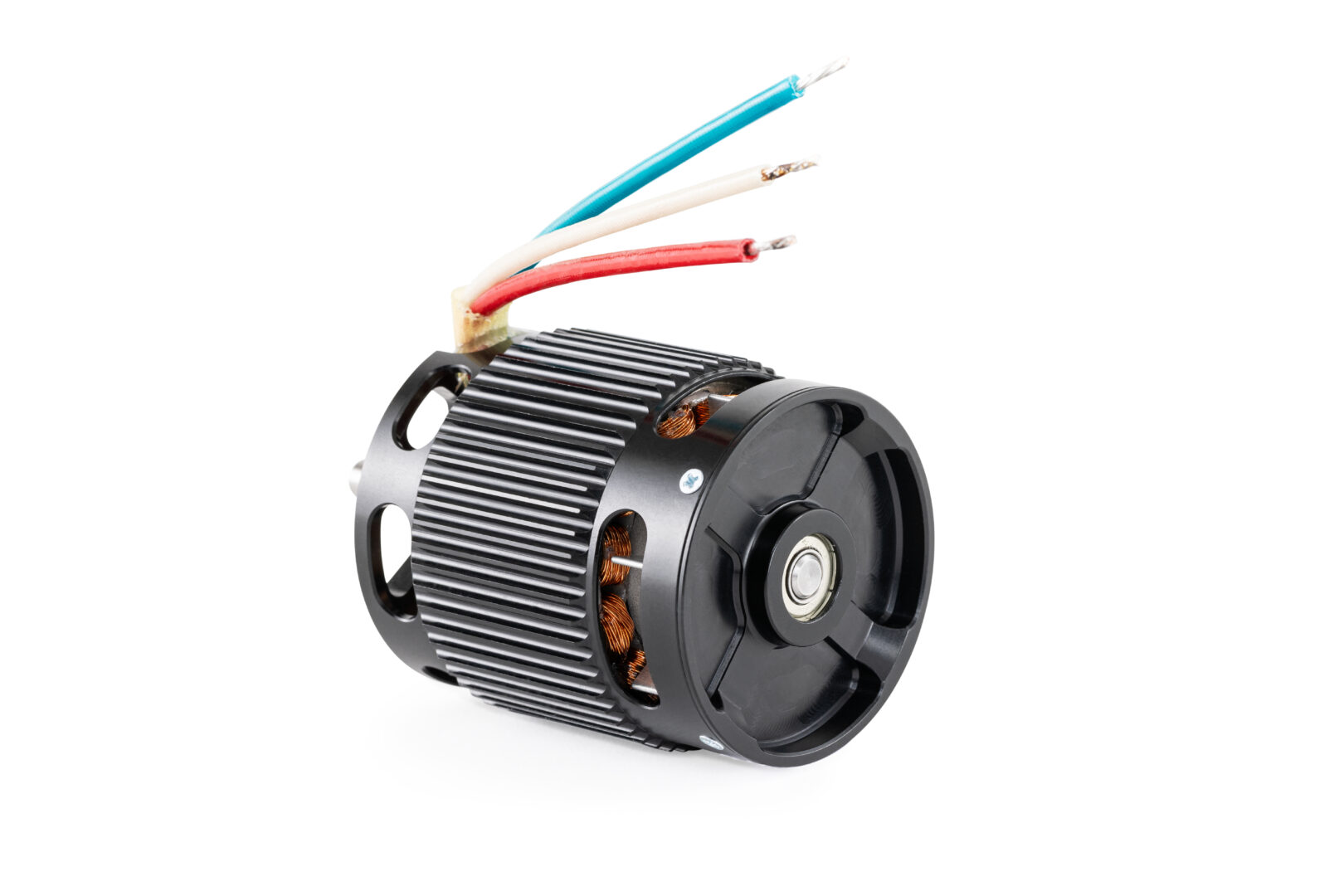

ADVANCE 1 is an inrunner BLDC motor with open housing design for high performance applications with up to 1 kW of power. The motor has best in class power-to-weight ratio and is very suitable for UAVs and other applications with constraints in space, weight and power supply. The ADVANCE 1 motor is air-cooled and has an integrated cooling fan.

The ADVANCE 1 is available as COTS (commercial-off-the-shelf) version in various standard configurations. Please refer to the COTS datasheets under resources (below) for more information.

The motor can also be provided as MOTS (modified-off-the-shelf) or as FC (fully custom) version. The MOTS version is provided with custom winding, while FC versions can be highly tailored according to requirements (e.g. tailored housing and shaft, changed number of poles, custom cooling system, added redundancy, higher IP rating, etc.). MOTS and FC products are offered in combination with engineering studies to provide the best possible support for our customers. Please contact our sales team for more information.

2 kW
Peak Power
2.4 Nm
Peak Torque
Max. RPM
You want more information or discuss how we can design a tailored drive solution for your application?
  • Ultra-light weight design
  • Low moment of inertia with high efficiency in dynamic applications such as multi-copters
  • Best in class power-to-weight ratio and efficiency
  • High torque density
  • Very smooth running
  • No need for gear boxes in most applications
Product Type

BLDC inrunner motor, open design

Motor diameter

from 55 mm

Motor length (excl. shaft)

from 64 mm


from 415 g


Air-cooled open design with integrated cooling fan

Protection class

IP 20

Peak power

up to 2 kW


2,000 – 15,000 1/min

Peak Torque

up to 2.4 Nm


15 – 60V


250 – 570 rpm/V

Efficiency max


The above specs are for orientation. The product can be tailored to your specific application. Please reach out to us for more information.
