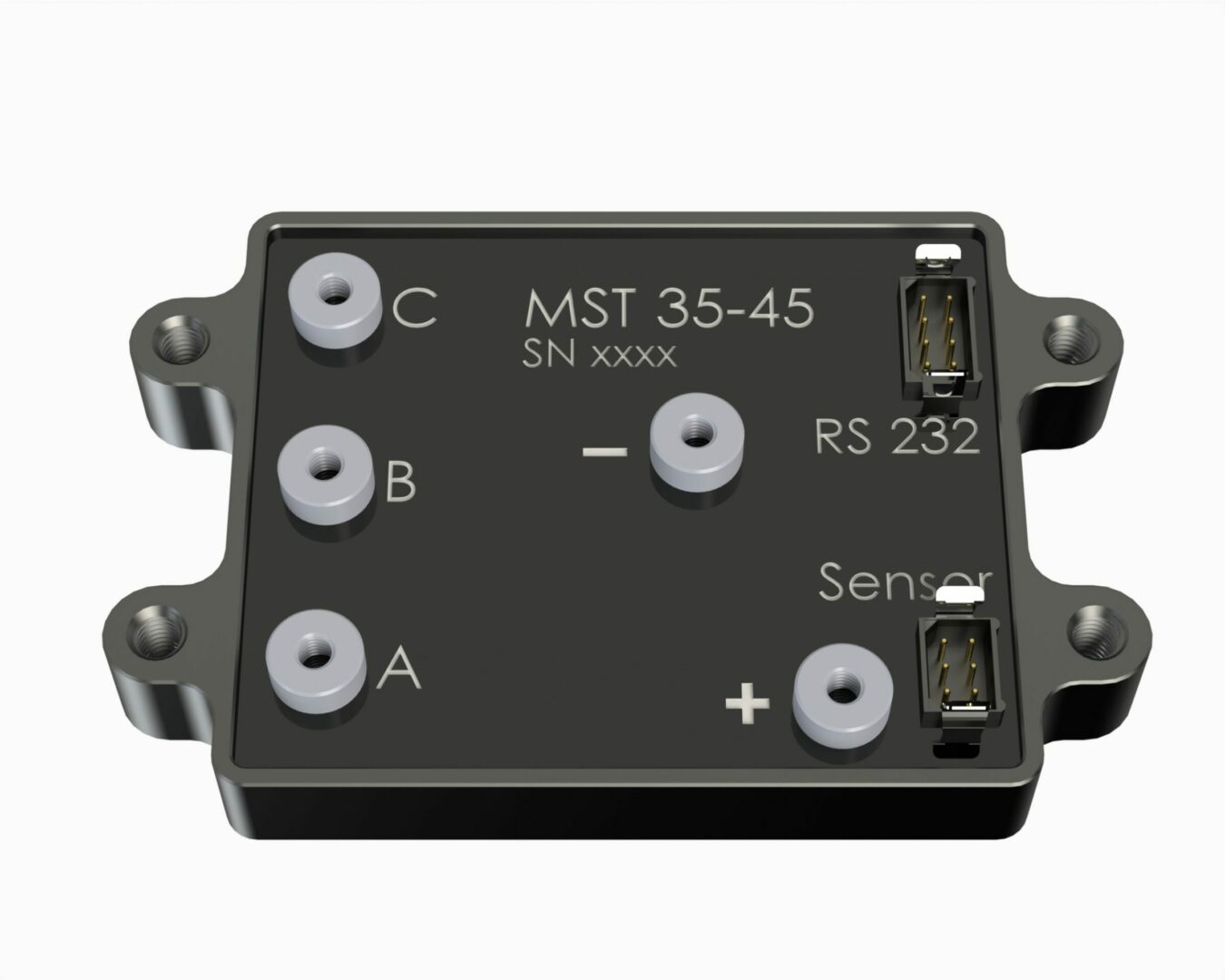

MST 35-45

Our electronic speed controller MST 35-45 is designed for a voltage of up to 35 V and current of up to 45 A. It can be combined with our NOVA 1 and 3 motor. We highly recommend using our motors and ESCs as a combined system solution as oftentimes competing products lead to suboptimal use of our motors, which ruins the weight and size advantages or even destroy our motors.

All our ESCs are designed to be highly robust and feature a very favorable power-to-weight ratio. We develop and manufacture our ESCs at our HQ in Germany according to highest quality standards. We can tailor our ESCs (including embedded software) to your specific application. Our engineering team will help you in designing the right solution for you and support you in system integration.

35 V
Max. Voltage
45 A
Max. Current
1.4 kW
Max. Continuous Power
You want more information or discuss how we can design a tailored drive solution for your application?
  • Super robust design for use in harsh environments
  • Standard protection class IP 50 (higher class possible)
  • Favorable power-to-weight ratio
  • Specifically designed for our high pole motor design
  • Combined with our motors, the highest system efficiency can be achieved
Product Type

Electronic speed controller for BLDC motor

Dimensions (LxWxH)

46x49x12 mm

Weight

c. 70 g

Cooling

Air cooled

Protection class

IP 40 (higher class possible)

Continuous power max.

1.4 kW (mounted on heat sink with 10° C/W)

Electric RPM limit

240,000 1/min

Voltage range

9 – 35 V

Current max.

45 A (60 A max. 5 sec.)

Interfaces

RS232 plus either CAN bus 2.0 or PWM or analog
