NOVA 4

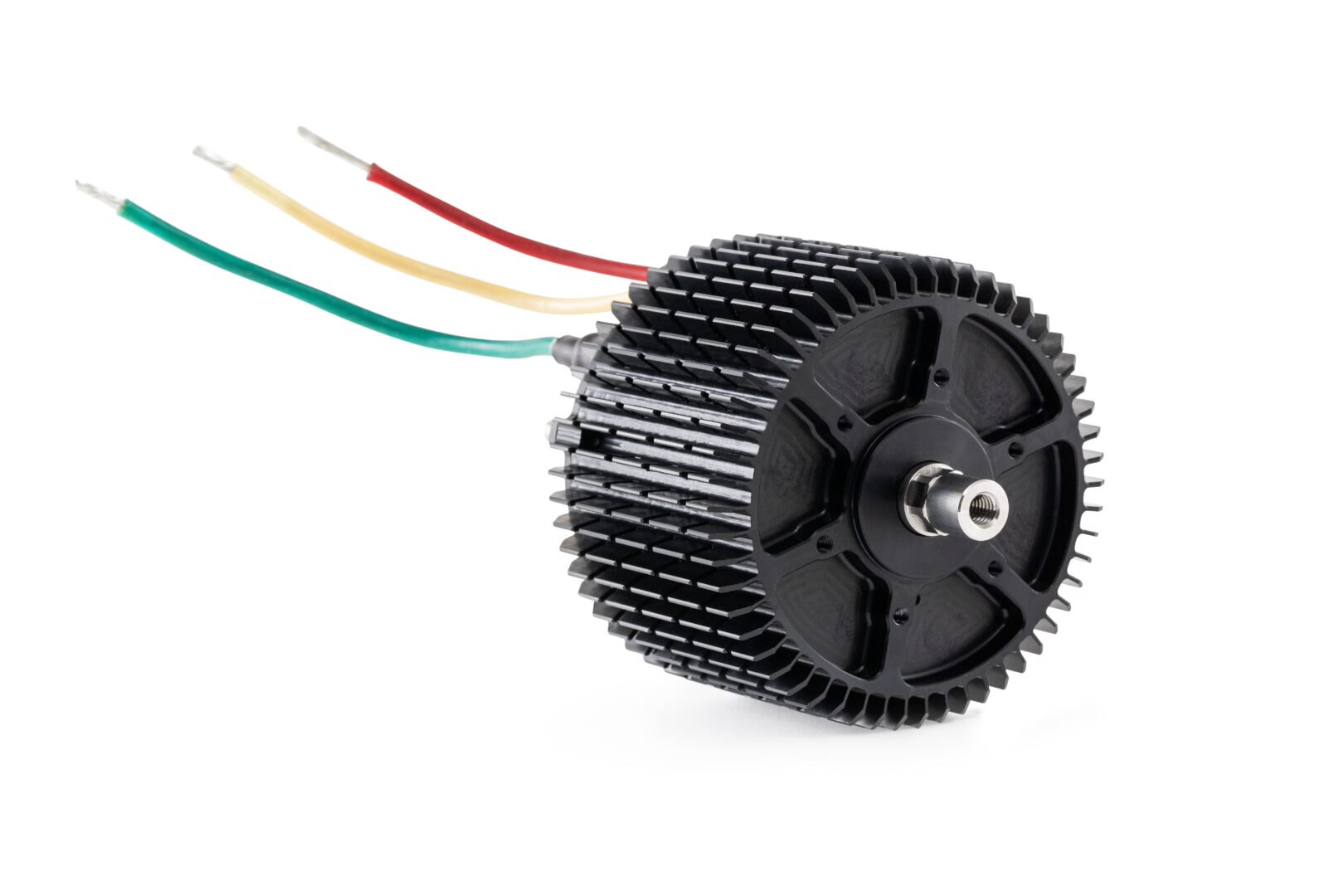

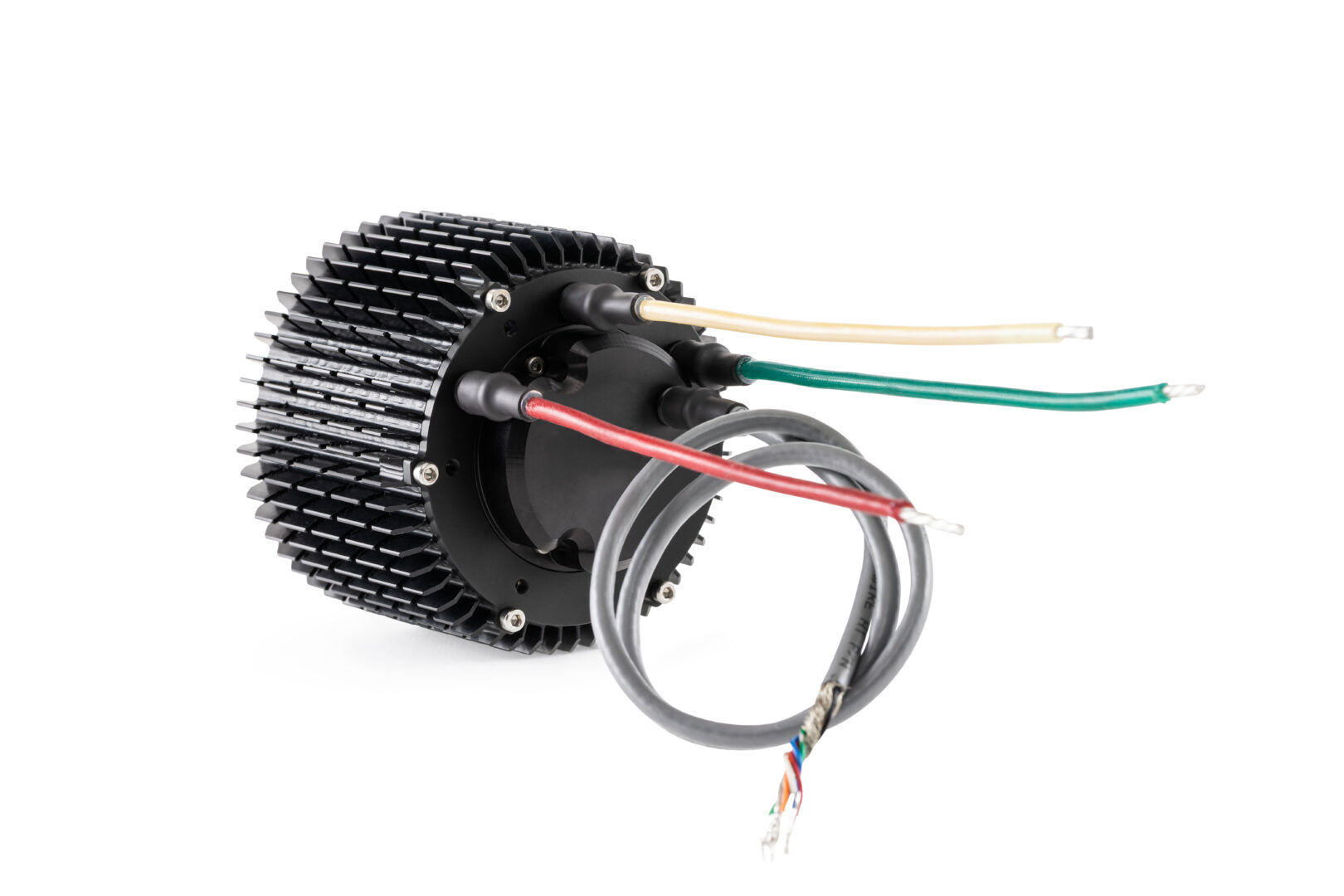

NOVA 4 is an inrunner BLDC motor for high performance applications with up to 4 kW of power. The motor has best in class power-to-weight ratio and is very suitable for UAVs and other applications with constraints in space, weight and power supply. The motor comes with IP 54 protection class as standard and can be adjusted to higher protection class on request. Given the closed design, the motor is very robust and ideal for application in harsh environments.

The NOVA 4 is available as COTS (commercial-off-the-shelf) version in various standard configurations. Please refer to the COTS datasheets under resources (below) for more information.

The motor can also be provided as MOTS (modified-off-the-shelf) or as FC (fully custom) version. The MOTS version is provided with custom winding, while FC versions can be highly tailored according to requirements (e.g. tailored housing and shaft, changed number of poles, custom cooling system, added redundancy, higher IP rating, etc.). MOTS and FC products are offered in combination with engineering studies to provide the best possible support for our customers. Please contact our sales team for more information.

4 kW
Peak Power
6.5 Nm
Peak Torque
11,000
Max. RPM
You want more information or discuss how we can design a tailored drive solution for your application?
  • Super robust design for use in harsh environments
  • Standard protection class IP 54 (higher class possible)
  • Best in class power-to-weight ratio and efficiency
  • Low moment of inertia with high efficiency in dynamic applications such as multi-copters
  • High torque density
  • Very smooth running
  • No need for gear boxes in most applications
Product Type

BLDC inrunner motor, closed design

Motor diameter

from 73 mm (with short cooling fins)

Motor length (excl. shaft)

from 72 mm

Weight

from 650 g

Cooling

Air-cooled

Protection class

IP 54 (higher class possible)

Peak power

up to 4 kW

RPM

2,000 – 11,000 1/min

Peak Torque

up to 6.5 Nm

Voltage

20 – 60 V

Kv

112 – 376 rpm/V

Efficiency max

>90% incl. Plettenberg ESC

The above specs are for orientation. The motor can be tailored to your specific application. Please reach out to us for more information.
