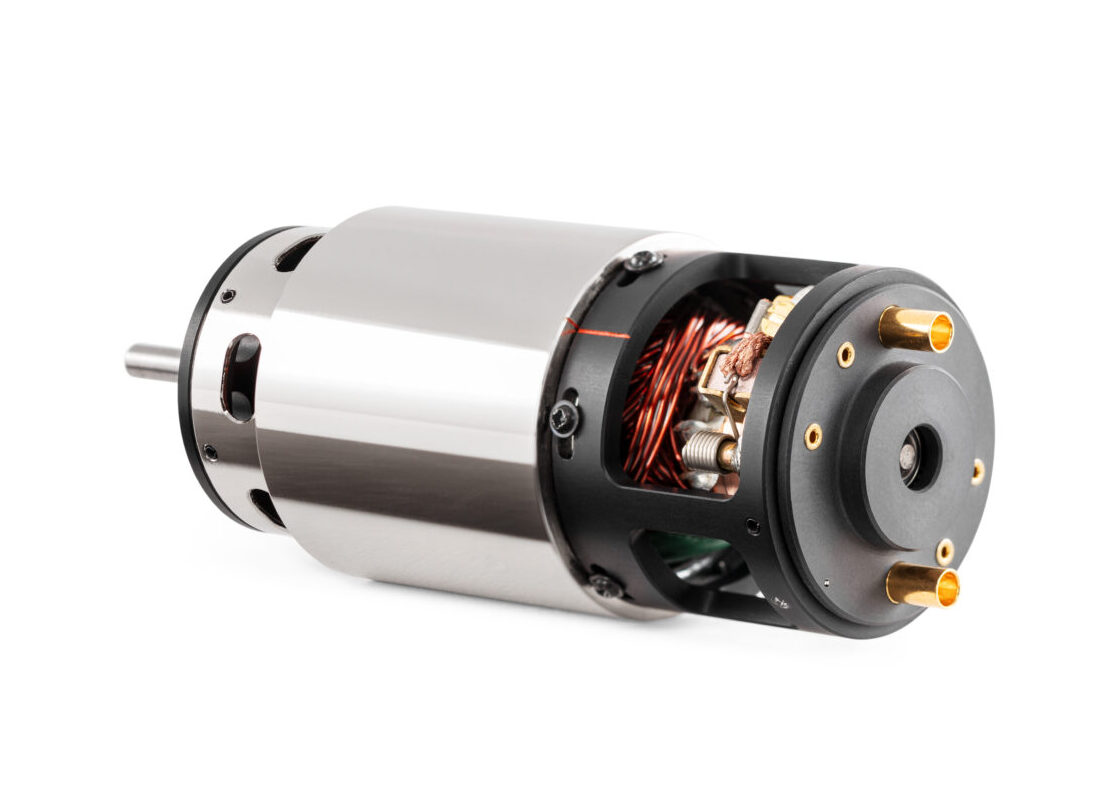

ALPHA 2

APLPHA 2 is a brushed DC motor for high performance applications with up to 1.7 kW of power. The motor has best in class power-to-weight ratio and is very suitable for industrial tools, robotic and other applications with constraints in space, weight and power supply.

The ALPHA 2 motor is available as air-cooled version.

We can tailor the motor according to your requirements. Please contact our sales team for more information.

1.7 kW
Peak Power
1.4 Nm
Peak Torque
20,000
Max. RPM
You want more information or discuss how we can design a tailored drive solution for your application?
  • Best in class power-to-weight ratio
  • Very compact and robust design
  • Easy to switch brushes
  • Only simple controller required, reducing system costs vs brushless motors
Product Type

Brushed DC Motor

Motor diameter

from 50 mm

Motor length (excl. shaft)

from 77 mm

Weight

from 450 g

Cooling

Air-cooled open design

Peak power

up to 1.7 kW

RPM

3,000 – 20,000 1/min

Peak Torque

up to 1.4 Nm

Voltage

12 – 32 V

Kv

260 – 1,420 rpm/V

Efficiency max

87%

The above specs are for orientation. The product can be tailored to your specific application. Please reach out to us for more information.
