- Super robust design for use in harsh environments
- Designed for high shock and vibration loads
- Standard protection class IP 53 (higher class possible)
- Best power-to-weight-to-robustness ratio in its class
- Wear-free position and temperature sensors included in standard
- No need for gear boxes in most applications
- Air and water cooled versions available

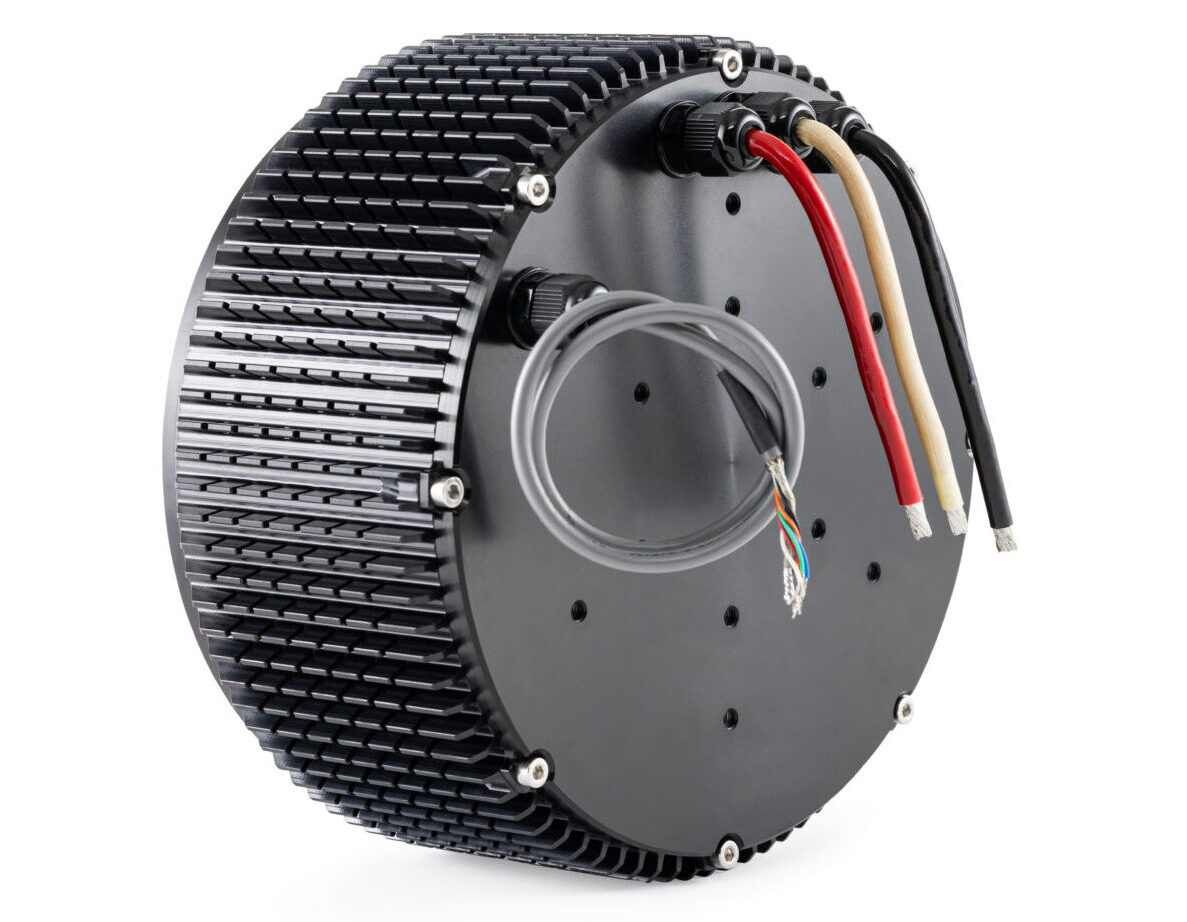

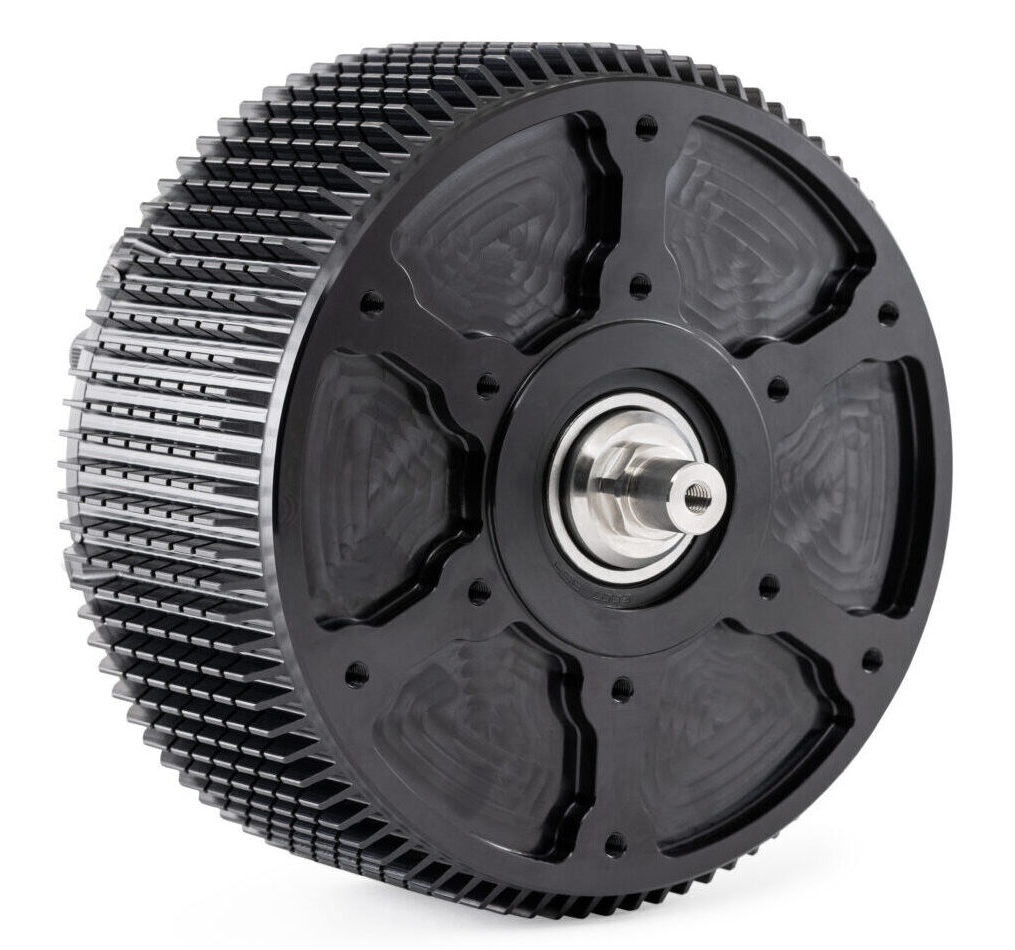

| Product Type | BLDC inrunner motor, closed design |
|---|---|
| Motor diameter | from 198 mm |
| Motor length (excl. shaft) | from 93 mm |
| Weight | from 5,000 g |
| Cooling | Air- or water-cooled |
| Protection class | IP 53 (higher class possible) |
| Peak power | up to 30 kW |
| RPM | 2,500 – 5,000 1/min | S-Version -7,000 1/min |
| Peak Torque | up to 80 Nm |
| Voltage | 30 – 140 V (optionally up to 320 V) |
| Kv | 12 – 72 rpm/V |
| Efficiency max | >90% incl. Plettenberg ESC |
The above specs are for orientation. The product can be tailored to your specific application. Please reach out to us for more information.
