- Super robust design for use in harsh environments
- Designed for high shock and vibration loads
- Qualified to MIL-STD 810H
- Standard protection class IP 54 (higher class possible)
- Best power-to-weight-to-robustness ratio in its class
- Wear-free position and temperature sensors included in standard
- No need for gear boxes in most applications

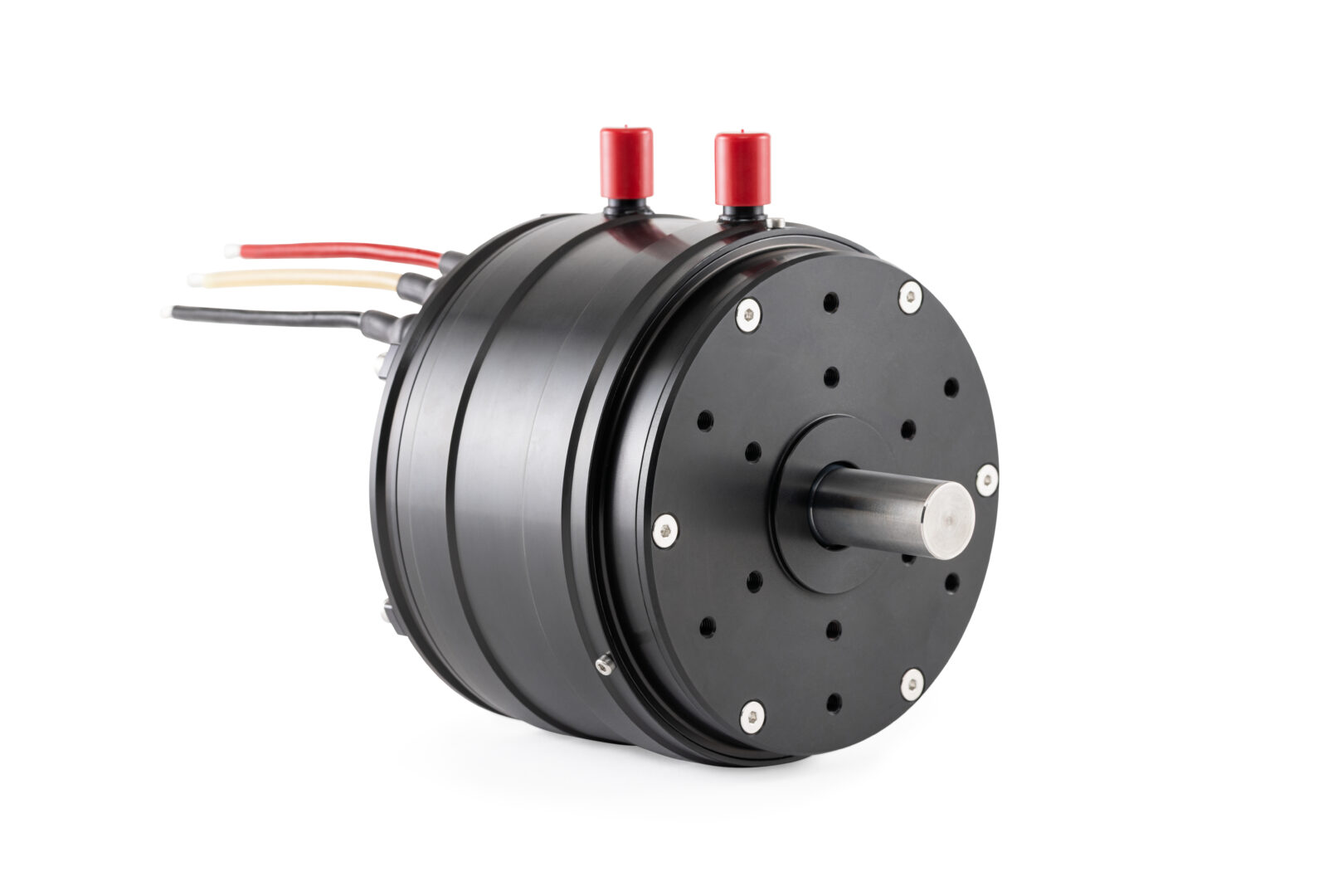

| Product Type | BLDC inrunner motor, closed design |
|---|---|
| Motor diameter | from 129 mm |
| Motor length (excl. shaft) | from 77 mm |
| Weight | from 2,500 g |
| Cooling | Water cooled |
| Protection class | IP 54 (higher class possible) |
| Peak power | up to 20 kW |
| RPM | 2,000 – 8,000 1/min | S-Version -11,000 1/min |
| Peak Torque | up to 55 Nm |
| Voltage | 20 – 120 V (optionally up to 600V) |
| Kv | 15 – 500 rpm/V |
| Efficiency max | >90% incl. Plettenberg ESC |
The above specs are for orientation. The product can be tailored to your specific application. Please reach out to us for more information.
