- Rated output power of 1,000 watts
- Ruggedized for use in extreme environments
- Designed for high shock and vibration loads
- Qualified to MIL-STD 810H
- Wear-free position and temperature sensors included
- Class leading power-to-weight-to-robustness ratio
- Attachment kit without bearing for direct integration on crank shaft for additional weight saving

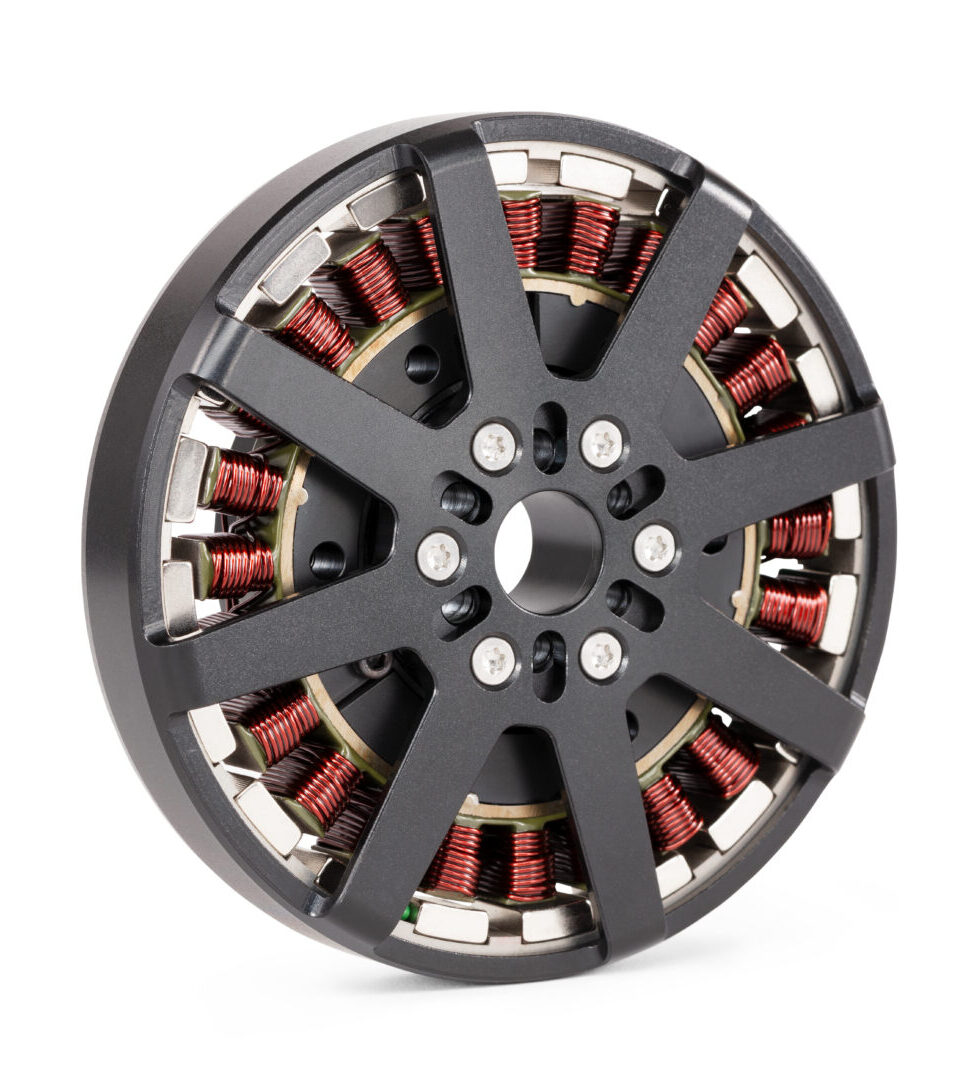

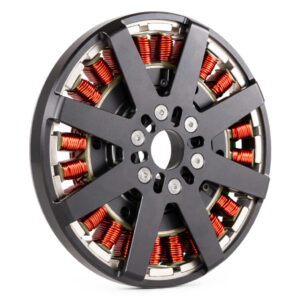

| Product Type | BLDC outrunner generator |
|---|---|
| Engine Size Range | 20 – 80 cc |
| Rated Power | 250 – 1,000 W |
| Peak Power | 1,500 W |
| RPM Range | 2,000 – 8,000 |
| Diameter | 100 mm |
| Length | 26 mm |
| Weight | 425 g |
The above specs are for orientation. The product can be tailored to your specific application. Please reach out to us for more information.
